技術(shù)規(guī)格

	IP等級	IP67
	工作溫度范圍	-20 → +70°C
	差分	0.8mm
	執(zhí)行器類型	Hinge Roller Lever
	操縱力	0.6N
	機械壽命	1 x 106Ops
	端子類型	Pre-Wired 30 cm
	觸點容量	2 A @ 250V交流
	觸點材料	Silver Alloy
	觸點配置	SPDT
	超行程	0.8mm
	釋放力	0.05N

詳情

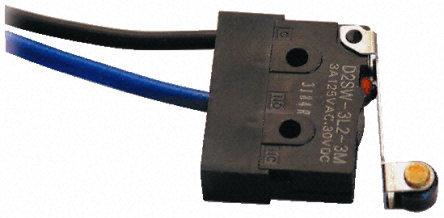

Sealed Miniature Microswitches

High quality sealed miniature microswitch in industry standard V4 housing

• Monoblock construction assures high sealing capability and is ideal for dusty places or where water is sprayed
  IEC IP50 rated (solder/pcb terminal), IEC IP67 rated (wire lead )
  RoHS compliant
  Contact rating: 3A@30Vdc/125Vac, 2A@250Vac
  Contact configuration: SPDT
  Operating temperature range: -40 to +80°C

• Approvals: UL, CSA, VDE
