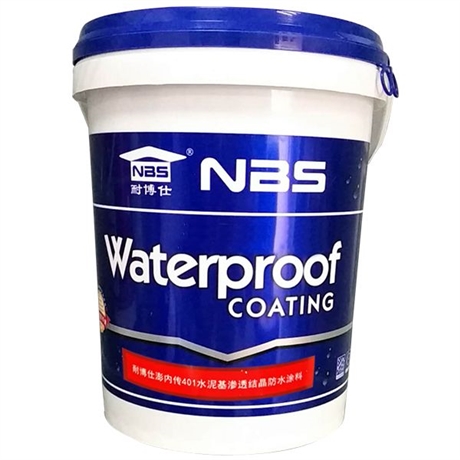

PNC401澎內傳滲透結晶水泥基防水涂料

naiboshipengnei chuan 401 cement-based penetrating crystalline waterproof coating

《產品說明書》<productmanual>

一、產品介紹 prooduct deion

　　耐博仕 澎內傳401水泥基滲透結晶防水涂料本產品波蘭特水泥分子結構為活性硅的活性物質，分子量小，同時含有疏水基團和親水基團，其親水性大于疏水性，可溶于水，在干燥環境中不發生縮聚結晶現象，而在潮濕環境中發生縮聚結晶現象，形成不溶于水的結晶體。由活性硅、水泥、活性無機混合物等混合而成。

naiboshipeng nei chuan 401 cement-based peng smuggled infiltration crystalline waterproof coating forthis product is a molecular structure of active silicon active substances,small molecular weight, contains hydrophobic groups and hydrophilic groups atthe same time, the hydrophilic outweigh the hydrophobicity, soluble in water,does not occur in the dry environment condensation crystallization phenomenon,and condensation crystallization occur in the moist environment, the crystalform of insoluble in water. it is composed of active silicon, cement and activeinorganic mixture.

二、產品詳情 product details

　　產品名稱 耐博仕澎內傳401水泥基滲透結晶防水涂料

naiboshipeng nei chuan 401 cement-based penetrating crystallinewaterproof coating

　　產品型號 product number nbs-401

　　產品形態 默認淺墨綠色，白色，客戶要求可水泥色，干粉

　　product form defaultlight dark green, white, customer requirements can be cement, dry powder

　　執行標準 implementationstandards gb18445-2012

三、 產品優點 product advantages

　　1、與基材粘結力強，漿料中的活性成份可滲入水泥基面中的毛細孔，微裂紋并產生化學反應；與底材融為一體而形成一層結晶致密的防水層。

　　strong adhesion tothe substrate, the active ingredients in the slurry can penetrate into thepores in the cement base surface, micro-cracks and chemical reactions occur; itis integrated with the substrate to form a crystalline dense waterproof layer.

　　2、防水抗?jié)B性能優異，既用于迎水面又可用于背水面防水。

　　excellent waterproof andanti-seepage performance, it can be used for waterproofing on both the frontand the back.

　　3、可在潮濕基面上施工。具有良好的透氣性，保持基體的干爽。

　　can be applied on wet bases. has goodbreathability and keeps the substrate dry.

　　4、本產品材質的主要成份為無機材料，耐老化、耐酸堿、無毒、無味、無污染、環保。

　　the main material ofthis product is inorganic material, which is resistant to aging, acid andalkali, non-toxic, tasteless, pollution-free and environmentally friendly.

四、適用范圍 scope of application

　　1、可廣泛應用于各地上、地下民用建筑的室內外墻體、垃圾池、防腐池、地面、地下室、屋頂和游泳池、水池、溝渠等的防滲防水。

　　it can be widelyused for anti-seepage and waterproofing of indoor and outdoor walls, toilets,floors, basements, roofs and swimming pools, pools, ditches, etc. of civilbuildings in various places.

　　2、工廠廠房，地板、地下停車場等具有穩定結構的建筑部位的防水防滲。

　　waterproof and anti-seepage of factory buildings,floors, underground parking lots and other structural parts with stablestructures.

五、施工工藝 construction technology

　　1、基面準備 basal preparation

　?。?）底材必須堅固、平整、干凈，無灰塵、油膩、蠟、脫模劑等以及其它碎屑物質；

　　the substrate must bestrong, flat and clean, free of dust, greasy, wax, mold release agents, andother debris;

　?。?）所有小孔隙、砂眼可用堵漏王加入少許清水拌成濕團狀，將其抹平；

　　all small pores andtrachoma can be filled with a little water and mixed into a wet ball by theplugging king, and smooth it out;

　?。?）涂刷漿料之前，預先充分濕潤底材，但不能有積水。

　　wetthe substrate sufficiently before applying the slurry, but there should be nostanding water.

　　2、混合比例，重量比 a. 用于涂刷（噴涂）：粉料：水=25：（7~8）； b. 用于刮涂：粉料：水=25：（6~7）。將水倒入容器,然后再將粉劑慢慢倒入水中，并用電動攪拌器充分?jǐn)嚢柚辆鶆驘o(wú)粉粒、無沉淀膏糊狀。

　　mixing ratio, weight ratio a. forpainting: powder: water = 25: (7 ~ 8); b.for wiping: powder: water = 25: (6 ~ 7). pour the water into the container,then slowly pour the powder into the water, and stir thoroughly with anelectric stirrer until there is no powder and no precipitate.

　　3、用毛刷或滾刷直接將漿料涂刷在基面上，仔細檢查有無漏刷或瑕疵；操作過程中應保持間斷性攪拌，以防止沉淀。

　　brushthe slurry directly on the base surface with a brush or roller brush, andcarefully check for missing brushes or defects; intermittent stirring should bemaintained during operation to prevent precipitation.

　　4、用于防潮，可涂刷一層；用于防水，應至少涂刷（噴涂/刮涂）二層。應采用多層施工法，按標準用量施工，厚度原則上單層不超過2mm。

　　for moistureresistance, one layer can be painted; for waterproof, at least two layersshould be painted. the multi-layer construction method shall be adopted, andthe construction shall be carried out according to the standard dosage. inprinciple, the thickness of a single layer shall not exceed 1 mm.

　　5、等一層完全干透后（約4小時），再涂抹第二層。第二層的涂刷方向應與一層的涂刷方向相垂直。

　　after the firstlayer is completely dry (about 4 hours), apply the second layer. the brushingdirection of the second layer should be perpendicular to the brushing directionof the first layer.

六、注意事項 matters needing attention

　　1、切忌將已干結的膠漿加水混合后再用。

　　never mix the dried glue with water beforeuse.

　　2、施工過程中必須防雨淋、酷熱陽光照射及霜凍。

　　it must be protected from rain, extremely hotsunlight and frost during construction.

　　3、防水層完全干固后，方可做其它覆蓋層。

　　after the waterprooflayer is completely dry, it can be used as other covering layer.

　　4、可能會出現輕微震動、移動、裂縫的建筑物、管道、伸縮縫、后澆帶等場合防水建議采用耐博仕k11柔韌性防水漿料。

　　buildings, pipes,expansion joints, post-casting belts, etc., which may show slight vibration,movement, cracks, etc. waterproofing is recommended to use nexus k11 flexiblewaterproofing slurry.

七、參考用量 reference dosage

　　防水膜厚度為1.0mm時，理論用量約為1.5 -1.8kg/m2。實際用量視具體基面情況而定。

　　whenthe waterproof film thickness is 1.0mm, the theoretical dosage is about 1.5-1.8kg / m2. the actual amount depends on the specific base situation.

八、保質期: shelf life:

　　在正常貯存、運輸條件下，保質期為一年。

　　undernormal storage and transportation conditions, the shelf life is one year.

九、包裝規格: nine, packaging specifications:

　　1、 產品規格

　　productspecifications

　　25kg 干粉 50kg dry powder
